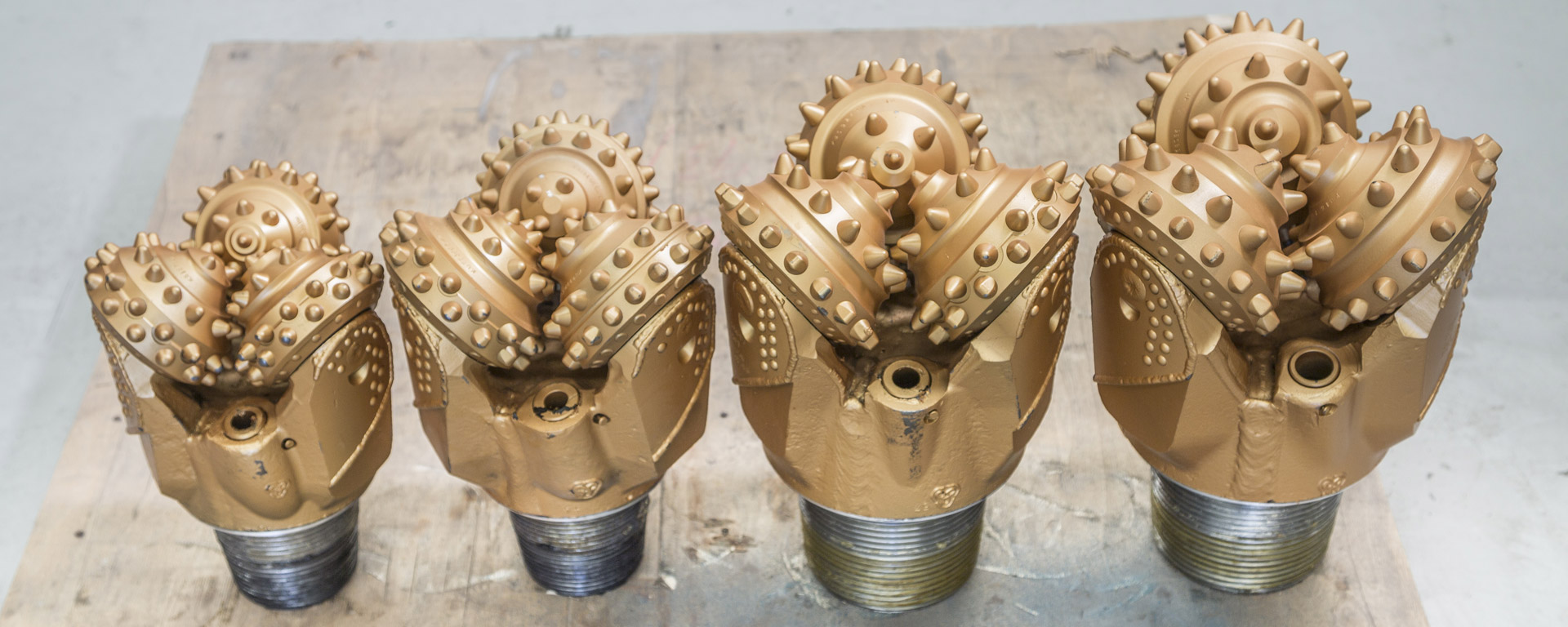

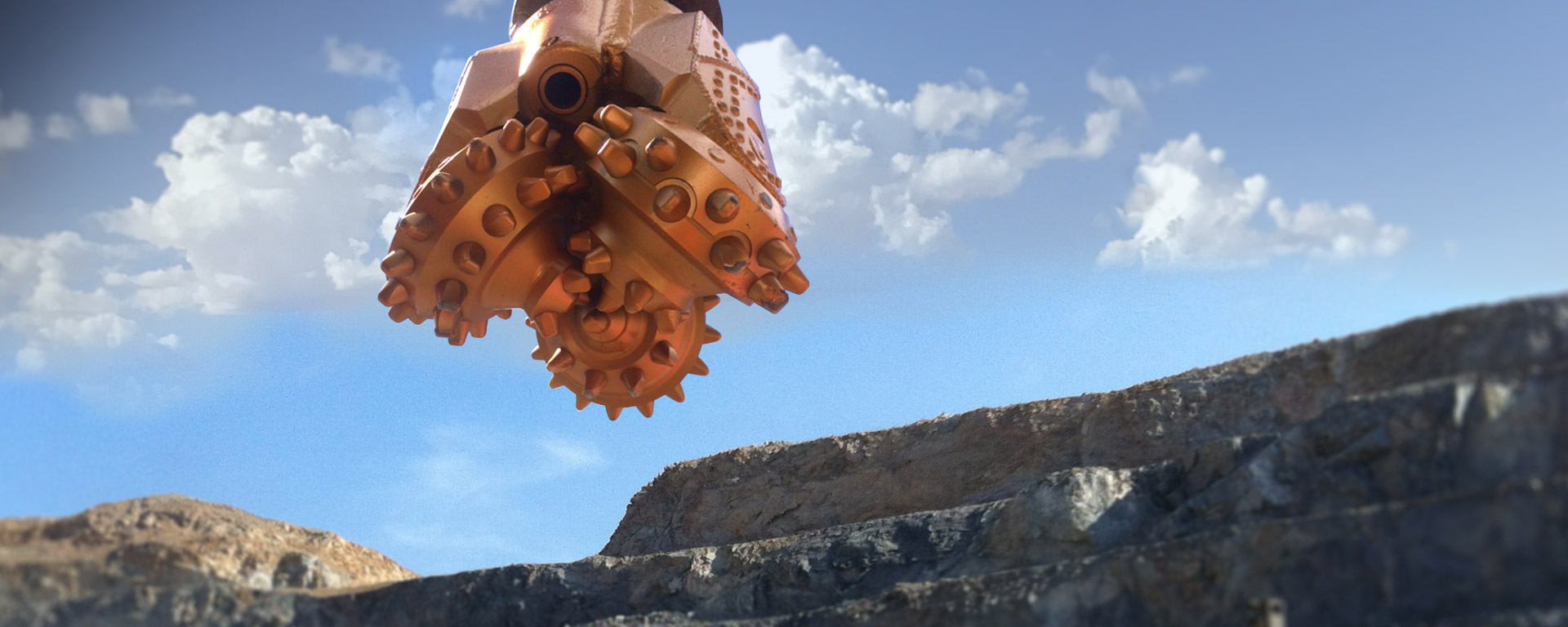

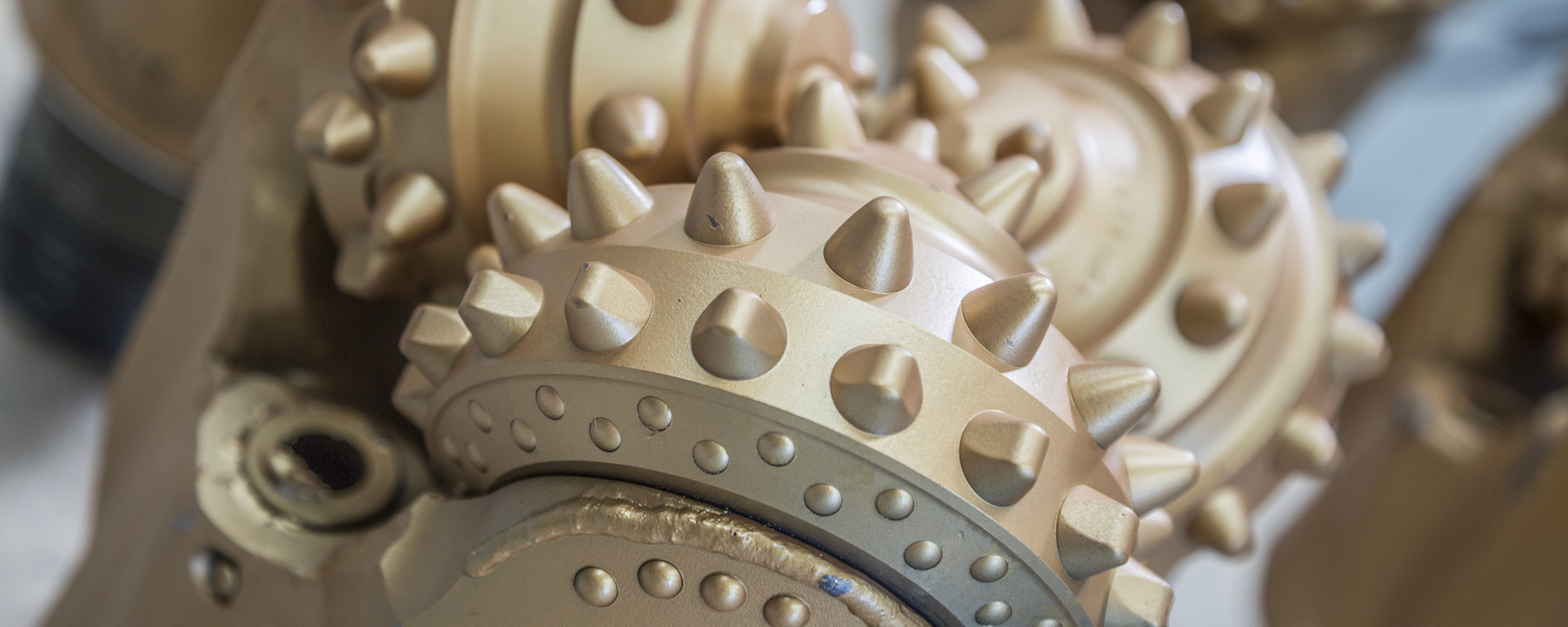

Shareate Tools - Large Diameter Tricone Bits

For Drill and Blast Operations

Australasian Mining Services (Pty) Ltd is the official exclusive distributor for Shareate Tools Ltd products in Australia.

The “SGV” is our most recent design with an improved bearing structure and modified profile composite seal to improve durability. The SGV bearing design has proven itself with over 100 million metres drilled showing a significant increase in life compared to the traditional bearing structure. The drill bit can be manufactured with additional protection features on the cone, shirttail, leg, and back of the leg. We can customize the protection based on specific ground conditions being drilled.

Shareate products are designed and manufactured to certified API Q1 Specification 7 and ISO 9001 standards. Their extensive in-house quality control system has established Shareate’s reputation for reliability and excellence.

Shareate Tools Ltd is committed to:

Highest quality of manufacturing
New products and design innovation
Balancing performance with price
Providing solutions to lower total drill costs

6 1/4" SA 412

Product Sheet

IADC Code:

412

Application:

4,000 - 7,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

6,250 - 12,500

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

159

Product Weight:

Pin Connection:

3 1/2" API

6 1/4" SA 732

Product Sheet

IADC Code:

732

Application:

4,000 - 7,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Ovoid

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

25,000 - 43,750

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

159

Product Weight:

Pin Connection:

3 1/2" API

6 3/4" SG 532G

Product Sheet

IADC Code:

532

Application:

15,000 - 23,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Conical

Gage Level Protection:

Ovoid

Technical

Operating Suggestions:

Weight on Bit:

13,500 - 33,750

Rotary Speed:

80 - 110

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

171

Product Weight:

Pin Connection:

3 1/2" API

6 3/4" SG 632G

Product Sheet

IADC Code:

632

Application:

15,000 - 23,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive & Conical

Gage Row:

Ovoid

Gage Level Protection:

Ovoid

Technical

Operating Suggestions:

Weight on Bit:

20,250 - 40,500

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

171

Product Weight:

Pin Connection:

3 1/2" API

6 3/4" SG 732G

Product Sheet

IADC Code:

732

Application:

43,000 - 52,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive & Conical

Gage Row:

Ovoid

Gage Level Protection:

Ovoid

Technical

Operating Suggestions:

Weight on Bit:

27,000 - 47,250

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

171

Product Weight:

Pin Connection:

3 1/2" API

7 7/8" SA 412

Product Sheet

IADC Code:

412

Application:

4,000 - 7,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

7,880 - 15,750

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

200

Product Weight:

Pin Connection:

4 1/2" API

7 7/8" SA 415

Product Sheet

IADC Code:

415

Application:

4,000 - 7,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

7,880 - 15,750

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

200

Product Weight:

Pin Connection:

4 1/2" API

7 7/8" SA 435

Product Sheet

IADC Code:

435

Application:

4,000 - 7,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

7,880 - 15,750

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

200

Product Weight:

Pin Connection:

4 1/2" API

7 7/8" SA 542

Product Sheet

IADC Code:

542

Application:

18,000 - 27,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Conical

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

15,750 - 39,380

Rotary Speed:

80 - 110

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

200

Product Weight:

Pin Connection:

4 1/2" API

7 7/8" SA 545

Product Sheet

IADC Code:

545

Application:

18,000 - 27,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Conical

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

15,750 - 39,380

Rotary Speed:

80 - 110

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

200

Product Weight:

Pin Connection:

4 1/2" API

7 7/8" SA 635

Product Sheet

IADC Code:

635

Application:

29,000 - 38,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Conical

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

23,630 - 47,250

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

200

Product Weight:

Pin Connection:

4 1/2" API

7 7/8" SA 735

Product Sheet

IADC Code:

735

Application:

43,000 - 52,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Ovoid

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

31,500 - 55,130

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

200

Product Weight:

Pin Connection:

4 1/2" API

7 7/8" SA 845

Product Sheet

IADC Code:

845

Application:

58,000 - 70,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Ovoid

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

39,380 - 63,000

Rotary Speed:

50 - 80

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

200

Product Weight:

Pin Connection:

4 1/2" API

8 1/2" SGA 635

Product Sheet

IADC Code:

635

Application:

29,000 - 38,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Conical

Gage Level Protection:

Ovoid

Technical

Operating Suggestions:

Weight on Bit:

25,500 - 51,000

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

216

Product Weight:

Pin Connection:

4 1/2" API

8 1/2" SGA 735

Product Sheet

IADC Code:

735

Application:

43,000 - 52,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive & Ovoid

Gage Row:

Ovoid

Gage Level Protection:

Ovoid

Technical

Operating Suggestions:

Weight on Bit:

34,000 - 59,500

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

216

Product Weight:

Pin Connection:

4 1/2" API

8 1/2" SGA 835

Product Sheet

IADC Code:

835

Application:

43,000 - 52,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ovoid

Gage Row:

Ovoid

Gage Level Protection:

Ovoid

Technical

Operating Suggestions:

Weight on Bit:

42,500 - 68,000

Rotary Speed:

50 - 80

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

216

Product Weight:

Pin Connection:

4 1/2" API

9" SA 412

Product Sheet

IADC Code:

412

Application:

9,000 - 18,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

9,000 - 18,000

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

229

Product Weight:

Pin Connection:

4 1/2" API

9" SA 415

Product Sheet

IADC Code:

415

Application:

9,000 - 18,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

9,000 - 18,000

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

229

Product Weight:

Pin Connection:

4 1/2" API

9" SA 435

Product Sheet

IADC Code:

435

Application:

6,000 - 9,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

9,000 - 36,000

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

229

Product Weight:

Pin Connection:

4 1/2" API

9" SA 545

Product Sheet

IADC Code:

545

Application:

18,000 - 27,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Off-Set Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

18,000 - 45,000

Rotary Speed:

80 - 110

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

229

Product Weight:

Pin Connection:

4 1/2" API

9" SA 635

Product Sheet

IADC Code:

635

Application:

29,000 - 38,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Ovoid

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

27,000 - 54,000

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

229

Product Weight:

Pin Connection:

4 1/2" API

9" SA 745

Product Sheet

IADC Code:

745

Application:

43,000 - 52,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Ovoid

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

36,000 - 63,000

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

229

Product Weight:

Pin Connection:

4 1/2" API

9" SA 845

Product Sheet

IADC Code:

845

Application:

58,000 - 70,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ovoid

Gage Row:

Ovoid

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

45,000 - 72,000

Rotary Speed:

50 - 80

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

229

Product Weight:

Pin Connection:

4 1/2" API

9 7/8" SA415

Product Sheet

IADC Code:

415

Application:

4,000 - 7,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

9,880 - 19,750

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

251

Product Weight:

Pin Connection:

6 5/8" API

9 7/8" SA435

Product Sheet

IADC Code:

435

Application:

6,000 - 9,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

9,850 - 39,500

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

251

Product Weight:

Pin Connection:

6 5/8" API

9 7/8" SA535

Product Sheet

IADC Code:

535

Application:

15,000 - 23,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

19,750 - 49,380

Rotary Speed:

80 - 110

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

251

Product Weight:

Pin Connection:

6 5/8" API

9 7/8" SA615

Product Sheet

IADC Code:

615

Application:

23,000 - 30,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

29,630 - 49,380

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

251

Product Weight:

Pin Connection:

6 5/8" API

9 7/8" SA735

Product Sheet

IADC Code:

735

Application:

43,000 - 52,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Ovoid

Gage Level Protection:

Flat-Top

Technical

Operating Suggestions:

Weight on Bit:

39,500 - 69,130

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

251

Product Weight:

Pin Connection:

6 5/8" API

9 7/8" SA845

Product Sheet

IADC Code:

845

Application:

58,000 - 70,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ovoid

Gage Row:

Ovoid

Gage Level Protection:

Flat-Top

Technical

Operating Suggestions:

Weight on Bit:

49,375 - 79,000

Rotary Speed:

50 - 80

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

251

Product Weight:

Pin Connection:

6 5/8" API

10 5/8" SA415

Product Sheet

IADC Code:

415

Application:

4,000 - 7,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Off-Set Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

10,630 - 21,250

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

270

Product Weight:

Pin Connection:

6 5/8" API

10 5/8" SA425

Product Sheet

IADC Code:

425

Application:

5,000 - 8,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

10,630 - 21,250

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

270

Product Weight:

Pin Connection:

6 5/8" API

10 5/8" SA445

Product Sheet

IADC Code:

445

Application:

5,000 - 8,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

10,630 - 21,250

Rotary Speed:

90 - 120

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

270

Product Weight:

Pin Connection:

6 5/8" API

10 5/8" SA515

Product Sheet

IADC Code:

515

Application:

15,000 - 23,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Off-Set Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

21,250 - 53,130

Rotary Speed:

80 - 110

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

270

Product Weight:

Pin Connection:

6 5/8" API

10 5/8" SA535

Product Sheet

IADC Code:

535

Application:

15,000 - 23,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Conical

Gage Row:

Off-Set Chisel

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

21,250 - 53,130

Rotary Speed:

80 - 110

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

270

Product Weight:

Pin Connection:

6 5/8" API

10 5/8" SA615

Product Sheet

IADC Code:

615

Application:

23,000 - 30,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive & Conical

Gage Row:

Conical

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

31,880 - 53,130

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

270

Product Weight:

Pin Connection:

6 5/8" API

10 5/8" SA645

Product Sheet

IADC Code:

645

Application:

32,000 - 42,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Conical

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

31,880 - 63,750

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

270

Product Weight:

Pin Connection:

6 5/8" API

10 5/8" SA715

Product Sheet

IADC Code:

715

Application:

37,000 - 44,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ogive

Gage Row:

Conical

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

42,500 - 63,750

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

270

Product Weight:

Pin Connection:

6 5/8" API

12 1/4" SA645

Product Sheet

IADC Code:

645

Application:

32,000 - 42,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner/Nose Rows:

Ogive

Gage Row:

Conical

Gage Level Protection:

Ovoid

Technical

Operating Suggestions:

Weight on Bit:

36,750 - 73,500

Rotary Speed:

60 - 100

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

311

Product Weight:

Pin Connection:

6 5/8" API

12 1/4" SA725

Product Sheet

IADC Code:

725

Application:

40,000 - 48,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner/Nose Rows:

Ogive & Ovoid

Gage Row:

Ovoid

Gage Level Protection:

Flat

Technical

Operating Suggestions:

Weight on Bit:

49,000 - 73,500

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

311

Product Weight:

Pin Connection:

6 5/8" API

12 1/4" SA745

Product Sheet

IADC Code:

745

Application:

46,000 - 56,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Sealed Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner/Nose Rows:

Ogive & Ovoid

Gage Row:

Ovoid

Gage Level Protection:

Round

Technical

Operating Suggestions:

Weight on Bit:

49,000 - 85,750

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

311

Product Weight:

Pin Connection:

6 5/8" API

13 3/4" SGA 735

Product Sheet

IADC Code:

735

Application:

43,000 - 52,000

PSi

Product Specification

Bearing Type:

Roller-Ball-Roller-Thrust Button / Open Bearing

Circulation Type:

Jet Air

Cutting Structure:

Inner and Nose Rows:

Ovoid

Gage Row:

Conical

Gage Level Protection:

Ovoid

Technical

Operating Suggestions:

Weight on Bit:

55,000 - 96,250

Rotary Speed:

60 - 90

RPM

Air Back Pressure:

0.2 - 0.4

Size and Weight:

Metric Bit Diameter:

349

Product Weight:

271

Pin Connection:

6 5/8" API

ROTARY Tricone

Shareate Tools - Large Diameter Tricone Bits

For Drill and Blast Operations

Shareate Tools Ltd is committed to:

6 1/4" (159mm)

6 1/4" SA 412

IADC Code:

412

Product Specification

Technical

6 1/4" SA 732

IADC Code:

732

Product Specification

Technical

6 3/4" (171mm)

6 3/4" SG 532G

IADC Code:

532

Product Specification

Technical

6 3/4" SG 632G

IADC Code:

632

Product Specification

Technical

6 3/4" SG 732G

IADC Code:

732

Product Specification

Technical

7 7/8" (200mm)

7 7/8" SA 412

IADC Code:

412

Product Specification

Technical

7 7/8" SA 415

IADC Code:

415

Product Specification

Technical

7 7/8" SA 435

IADC Code:

435

Product Specification

Technical

7 7/8" SA 542

IADC Code:

542

Product Specification

Technical

7 7/8" SA 545

IADC Code:

545

Product Specification

Technical

7 7/8" SA 635

IADC Code:

635

Product Specification

Technical

7 7/8" SA 735

IADC Code:

735

Product Specification

Technical

7 7/8" SA 845

IADC Code:

845

Product Specification

Technical

8 1/2" (216mm)

8 1/2" SGA 635

IADC Code:

635

Product Specification

Technical

8 1/2" SGA 735

IADC Code:
